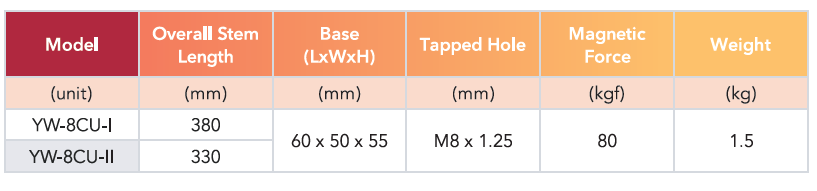

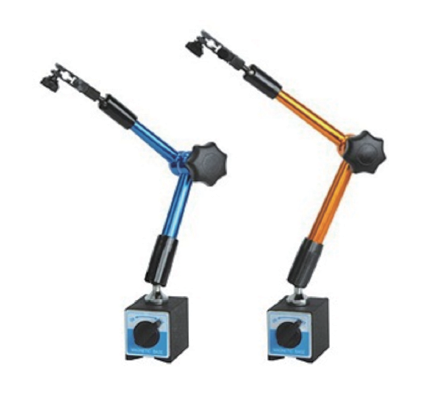

Hydraulic Universal I
1. The arm is aluminum alloy.
2. Dovetail groove for test indicator.
3. The main stem is fixed on the side of base.
4. Magnetic base with ON/Off switch.
5. Clamp hole: 8mm (optional hole 3/8")

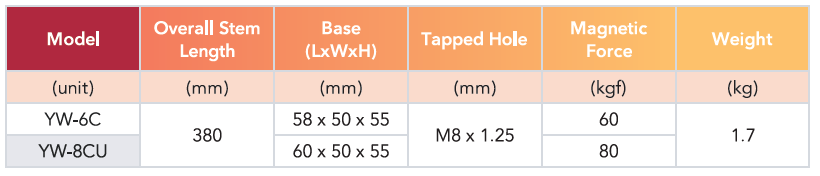

Hydraulic Universal II
1. The arm is steel.
2. Dovetail groove for test indicator.
3. Magnetic base with ON/Off switch.
4. Clamp hole: 8 mm (optional hole 3/8")

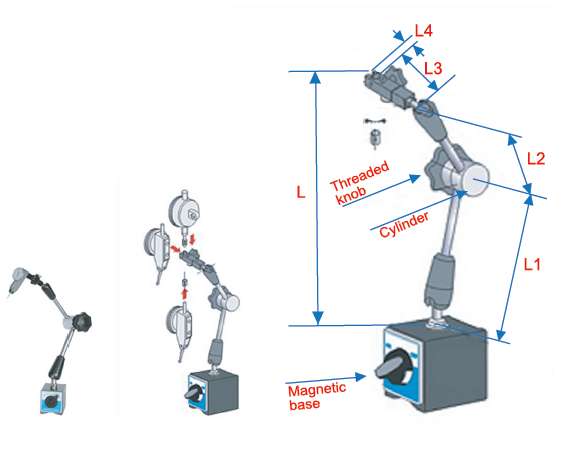

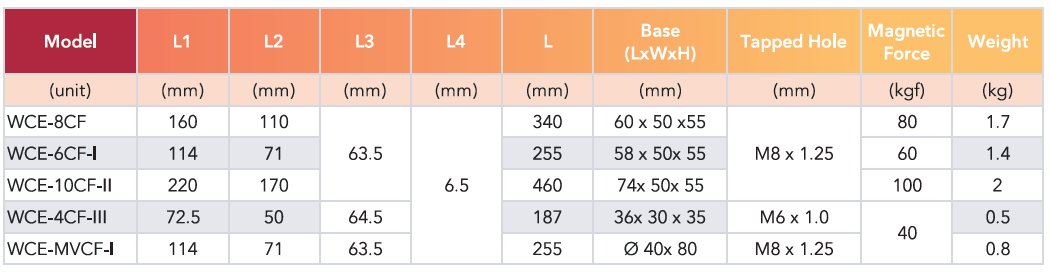

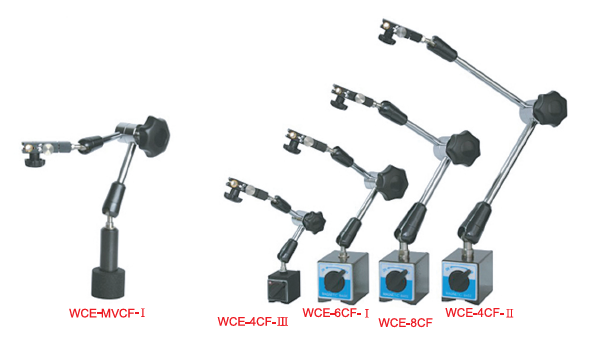

High Lock Mechanical Universal
1. All arm and cylinder are steel.
2. Dovetail groove for test indicator.
3. Clamp hole 8mm (reducer 6mm)
4. A wide variety of models (small, standard, large) are available to suit your applications.

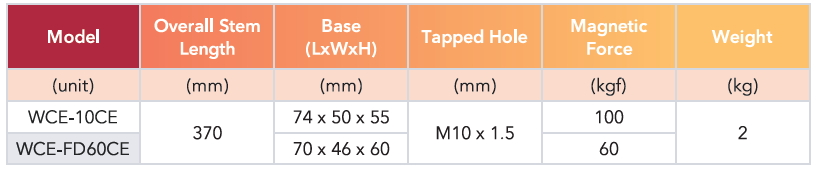

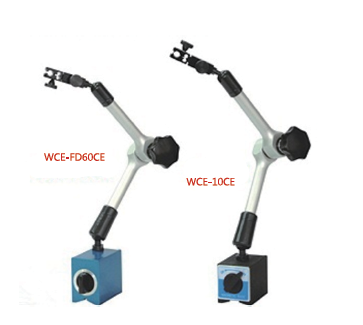

Heavy Duty Mechanical Universal Ⅰ
1. Magnetic base with On/Off switch.
2. Dovetail groove for test indicator.
3. Clamp hole 8mm (optional hole 3/8")
4. Stem is aluminum alloy.

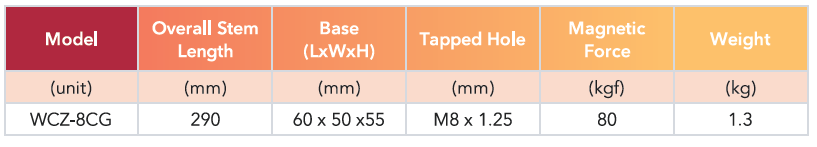

Heavy Duty Mechanical Universal Ⅱ
1. The arm can't apace drop when loosening the knob, no damaged to dial indicator etc.
2. Magnet base with On/Off switch.
3. Dovetail groove for test indicator.
4. Clamp hole 8mm (optional hole 3/8")

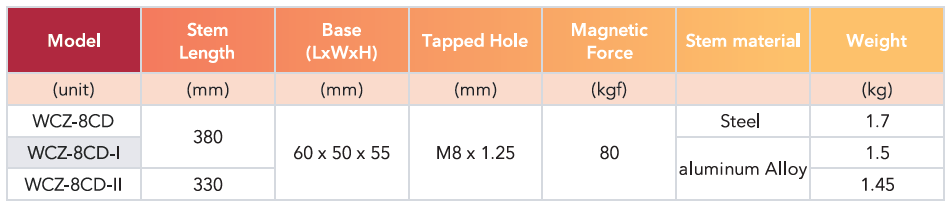

Heavy Duty Mechanical Universal Ⅲ
1. The arm can't apace drop when loosening the knob, no damaged to dial indicator etc.
2. Magnet base with On/Off switch.
3. Dovetail groove for test indicator.
4.Clamp hole 8mm (optional hole 3/8")

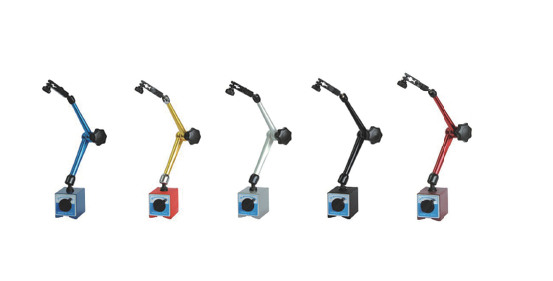

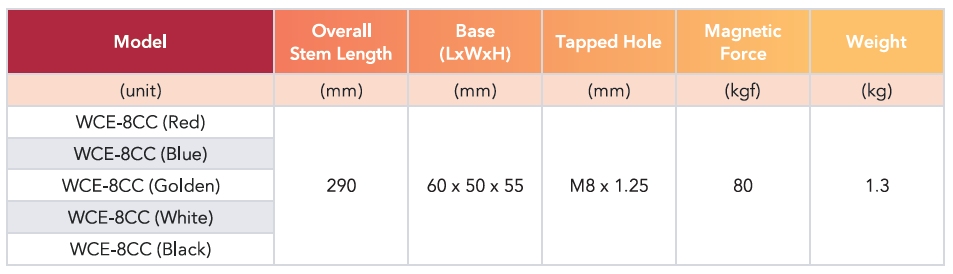

Mechanical Universal Ⅰ
1. All arm is aluminum alloy.
2. Magnet base with On/Off switch.
3. Dovetail groove for test indicator.
4. Clamp hole 8mm (optional hole 3/8")

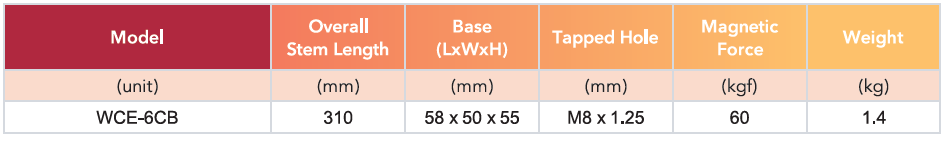

Mechanical Universal Ⅱ
1. The arm and cylinder are steel.
2. Magnet base with On/Off switch.
3. Dovetail groove for test indicator.
4. Clamp hole 8mm (optional hole 3/8")

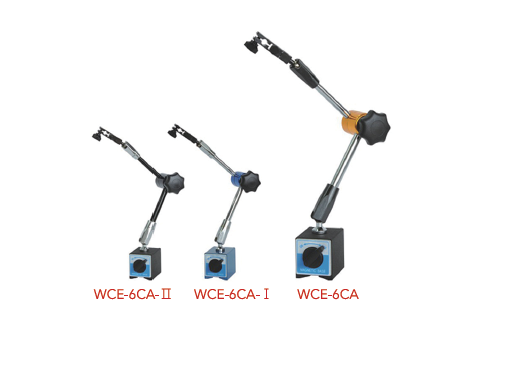

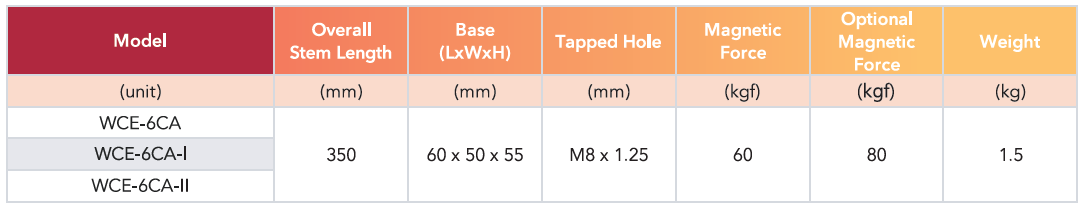

Mechanical Universal Ⅲ
1. The arm is steel, the cylinder is aluminum alloy.
2. Magnet base with On/Off switch.
3. Dovetail groove for test indicator.
4. Clamp hole 8mm (optional hole 3/8")

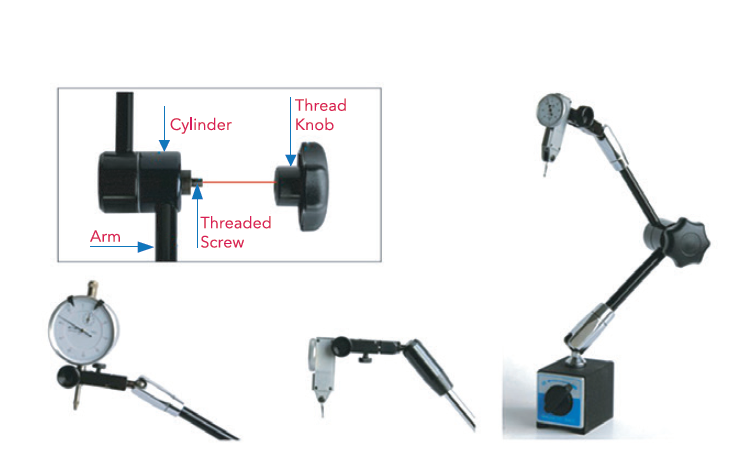

Mechanical Universal Magnetic Stand -Feature
．Any position can be set by tightening a knob to lock every part.
．A wild variety of models, small to large, are available to suit your applications.
．The arm can be adjusted freely in angle and direction and provides stable, shake free positioning.
．With fine adjustment.
